規格說明
紅銅管中接式套管端子(B type) 規格尺寸表
| ITEM NO. | d1ø | Dø | L | AWG | DINmm² |
| B 1.25 | 1.7 | 3.3 | 15 | 22-18 | 0.5-1.0 |
| B 2 | 2.3 | 4.0 | 15 | 16-14 | 1.5-2.5 |
| B 5.5 | 3.4 | 5.5 | 15 | 12-10 | 4-6 |
| B 8 | 4.5 | 7.1 | 21 | 8 | 10 |
| B 14 | 5.8 | 9.0 | 26 | 6 | 16 |
| B 22 | 7.7 | 11.4 | 29 | 4 | 25 |
| B 38 | 9.4 | 13.3 | 32 | 2 | 35 |
| B 60 | 11.4 | 15.4 | 36 | 1/0 | 50 |
| B 70 | 13.3 | 17.5 | 37 | 2/0 | 70 |
| B 80 | 14.5 | 19.4 | 38 | 3/0 | 95 |
| B 100 | 16.4 | 22.0 | 38 | 4/0 | 120 |
| B 150 | 19.5 | 26.5 | 54 | 250-300mcm | 150 |
| B 180 | 21.0 | 28.5 | 57 | 300-350mcm | 185 |
| B 200 | 24.0 | 32.5 | 63 | 400mcm | 240 |
| B 325 | 28.0 | 37.0 | 72 | 500-600mcm | 300 |

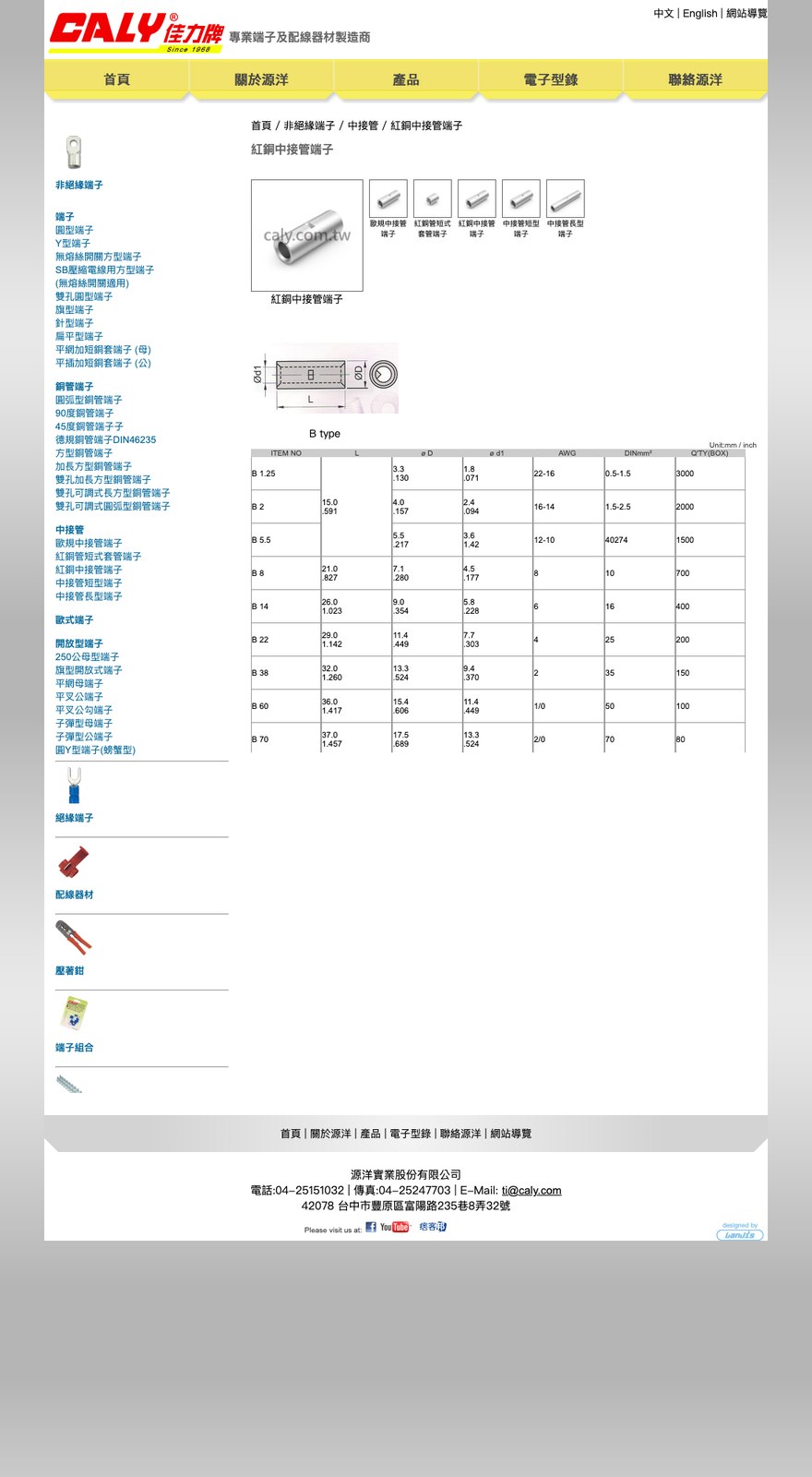

規格表
點選圖片可查看原尺寸。型號選型/編碼僅供參考，實際規格與供貨以原廠及報價為準。
