規格說明
CALY 圓型端子附絕緣（RF 系列）規格表
| ITEM NO. | d2ø | B | AWG | DINmm² |
| RF 1.25-3S | 3.2 | 5.5 | 22-18 | 0.5-1.0 |
| RF 1.25-3 | 3.7 | 5.5 | 22-18 | 0.5-1.0 |
| RF 1.25-3M | 3.7 | 6.6 | 22-18 | 0.5-1.0 |
| RF 1.25-4M | 4.3 | 6.6 | 22-18 | 0.5-1.0 |
| RF 1.25-4 | 4.3 | 8.0 | 22-18 | 0.5-1.0 |
| RF 1.25-5 | 5.3 | 8.0 | 22-18 | 0.5-1.0 |
| RF 1.25-6 | 6.4 | 11.6 | 22-18 | 0.5-1.0 |
| RF 1.25-8 | 8.4 | 11.6 | 22-18 | 0.5-1.0 |
| RF 1.25-10 | 10.5 | 13.6 | 22-18 | 0.5-1.0 |
| RF 1.25-12 | 13.0 | 19.0 | 22-18 | 0.5-1.0 |
| RF 2-3S | 3.2 | 5.5 | 16-14 | 1.5-2.5 |
| RF 2-3 | 3.7 | 8.5 | 16-14 | 1.5-2.5 |
| RF 2-3M | 3.7 | 6.6 | 16-14 | 1.5-2.5 |
| RF 2-4M | 4.3 | 6.6 | 16-14 | 1.5-2.5 |
| RF 2-4 | 4.3 | 8.5 | 16-14 | 1.5-2.5 |
| RF 2-5 | 5.3 | 9.5 | 16-14 | 1.5-2.5 |
| RF 2-6 | 6.4 | 12.0 | 16-14 | 1.5-2.5 |
| RF 2-8 | 8.4 | 12.0 | 16-14 | 1.5-2.5 |
| RF 2-10 | 10.5 | 13.6 | 16-14 | 1.5-2.5 |
| RF 2-12 | 13.0 | 19.0 | 16-14 | 1.5-2.5 |
| RF 3.5-4 | 4.3 | 8.0 | 14-12 | 2.5-4 |
| RF 3.5-5 | 5.3 | 8.0 | 14-12 | 2.5-4 |
| RF 3.5-6 | 6.4 | 12.0 | 14-12 | 2.5-4 |
| RF 3.5-8 | 8.4 | 15.0 | 14-12 | 2.5-4 |
| RF 3.5-10 | 10.5 | 15.0 | 14-12 | 2.5-4 |
| RF 3.5-12 | 13.0 | 19.0 | 14-12 | 2.5-4 |
| RF 5.5-4 | 4.3 | 9.5 | 12-10 | 4-6 |
| RF 5.5-5 | 5.3 | 9.5 | 12-10 | 4-6 |
| RF 5.5-6 | 6.4 | 12.0 | 12-10 | 4-6 |
| RF 5.5-8 | 8.4 | 15.0 | 12-10 | 4-6 |
| RF 5.5-10 | 10.5 | 15.0 | 12-10 | 4-6 |
| RF 5.5-12 | 13.0 | 19.2 | 12-10 | 4-6 |
| ITEM NO. | d2ø | B | AWG | DINmm² |
| RF 8-4 | 4.3 | 12.0 | 8 | 10 |
| RF 8-5 | 5.3 | 12.0 | 8 | 10 |
| RF 8-5S | 5.3 | 9.0 | 8 | 10 |
| RF 8-6 | 6.4 | 12.0 | 8 | 10 |
| RF 8-8 | 8.4 | 15.0 | 8 | 10 |
| RF 8-10 | 10.5 | 15.0 | 8 | 10 |
| RF 8-12 | 13.0 | 20.0 | 8 | 10 |
| RF 14-4 | 4.3 | 12.0 | 6 | 16 |
| RF 14-5 | 5.3 | 12.0 | 6 | 16 |
| RF 14-6 | 6.4 | 12.0 | 6 | 16 |
| RF 14-8 | 8.4 | 16.0 | 6 | 16 |
| RF 14-10 | 10.5 | 16.0 | 6 | 16 |
| RF 14-11 | 11.5 | 22.0 | 6 | 16 |
| RF 14-12 | 13.0 | 22.0 | 6 | 16 |
| RF 22-5S | 5.3 | 12.0 | 4 | 25 |
| RF 22-6S | 6.4 | 12.0 | 4 | 25 |
| RF 22-8S | 8.4 | 12.0 | 4 | 25 |
| RF 22-5 | 5.3 | 12.0 | 4 | 25 |
| RF 22-6 | 6.4 | 16.5 | 4 | 25 |
| RF 22-8 | 8.4 | 16.5 | 4 | 25 |
| RF 22-10S | 10.5 | 16.5 | 4 | 25 |
| RF 22-10 | 10.5 | 17.5 | 4 | 25 |
| RF 22-11 | 11.5 | 22.0 | 4 | 25 |
| RF 22-12 | 13.0 | 22.0 | 4 | 25 |
| RF 38-6S | 6.4 | 15.3 | 2 | 35 |
| RF 38-8S | 8.4 | 15.3 | 2 | 35 |
| RF 38-10S | 10.5 | 15.3 | 2 | 35 |
| RF 38-6 | 6.4 | 22.0 | 2 | 35 |
| RF 38-8 | 8.4 | 22.0 | 2 | 35 |
| RF 38-10 | 10.5 | 22.0 | 2 | 35 |
| RF 38-11 | 11.5 | 22.0 | 2 | 35 |
| RF 38-12 | 13.0 | 22.0 | 2 | 35 |
規格表

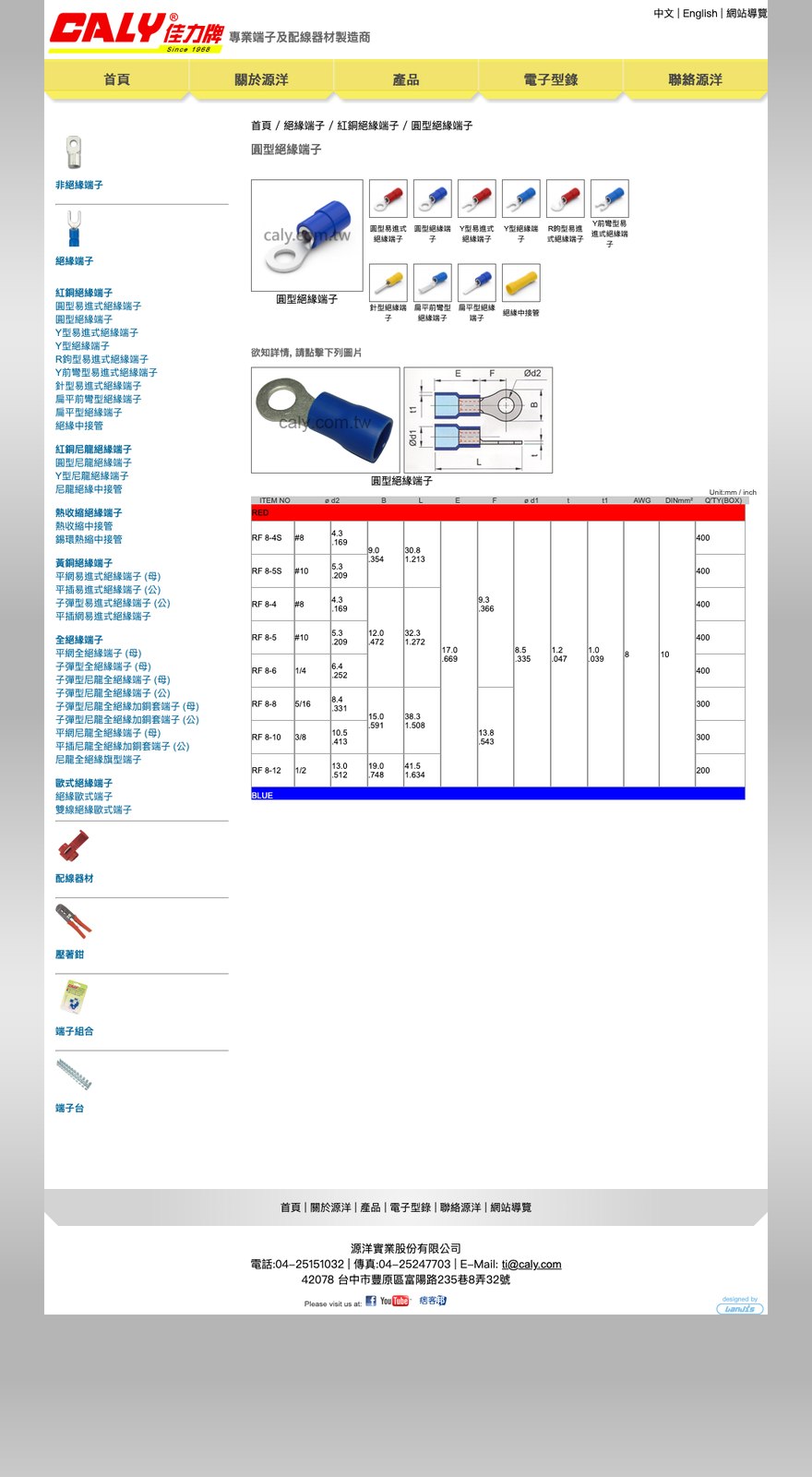

點選圖片可查看原尺寸。型號選型/編碼僅供參考，實際規格與供貨以原廠及報價為準。
