規格說明
CALY Y型端子附絕緣（YF 系列）規格表
| 型號 | d2ø | B | AWG | DIN mm² |
|---|---|---|---|---|
| YF 1.25-3S | 3.7 | 5.7 | 22-18 | 0.5-1.0 |
| YF 1.25-3 | 3.7 | 6.2 | 22-18 | 0.5-1.0 |
| YF 1.25-4S | 4.3 | 6.4 | 22-18 | 0.5-1.0 |
| YF 1.25-4 | 4.3 | 7.2 | 22-18 | 0.5-1.0 |
| YF 1.25-5 | 5.3 | 8 | 22-18 | 0.5-1.0 |
| YF 1.25-6 | 6.4 | 9.7 | 22-18 | 0.5-1.0 |
| YF 2-3S | 3.7 | 5.7 | 16-14 | 1.5-2.5 |
| YF 2-3 | 3.7 | 6.2 | 16-14 | 1.5-2.5 |
| YF 2-4S | 4.3 | 6.4 | 16-14 | 1.5-2.5 |
| YF 2-4 | 4.3 | 7.2 | 16-14 | 1.5-2.5 |
| YF 2-5 | 5.3 | 8 | 16-14 | 1.5-2.5 |
| YF 2-6 | 6.4 | 10.7 | 16-14 | 1.5-2.5 |
| YF 3.5-3S | 3.7 | 6.4 | 14-12 | 2.5-4 |
| YF 3.5-3 | 3.7 | 7.4 | 14-12 | 2.5-4 |
| YF 3.5-4S | 4.3 | 7 | 14-12 | 2.5-4 |
| YF 3.5-4 | 4.3 | 8 | 14-12 | 2.5-4 |
| YF 3.5-5 | 5.3 | 8 | 14-12 | 2.5-4 |
| YF 3.5-6 | 6.4 | 12 | 14-12 | 2.5-4 |
| YF 5.5-3S | 3.7 | 7.2 | 12-10 | 4-6 |
| YF 5.5-3 | 3.7 | 8.2 | 12-10 | 4-6 |
| YF 5.5-4S | 4.3 | 7.2 | 12-10 | 4-6 |
| YF 5.5-4 | 4.3 | 8.2 | 12-10 | 4-6 |
| YF 5.5-5 | 5.3 | 9 | 12-10 | 4-6 |
| YF 5.5-6 | 6.4 | 12 | 12-10 | 4-6 |

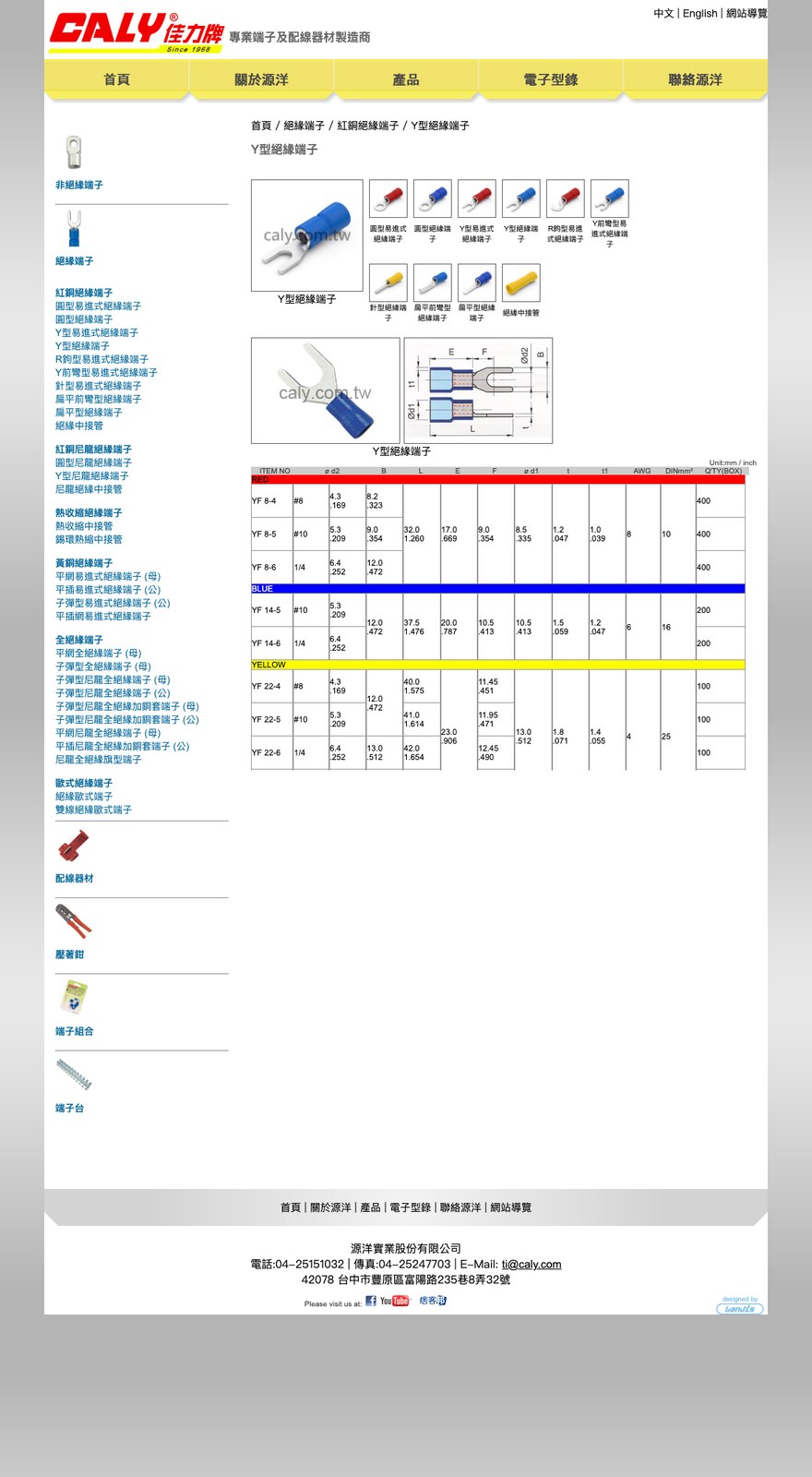

規格表
點選圖片可查看原尺寸。型號選型/編碼僅供參考，實際規格與供貨以原廠及報價為準。
