規格說明
材質：南亞硬質 P.V.C.(灰色)，絕緣性良好，不自燃，耐溫至85℃。
構造：由槽底及槽蓋兩部份組成。
用途：舞台、電氣、冷氣工程及室內明線配線等適用。
特點：密封式絕緣配線槽專為防塵、防鼠而設計。
規格表（長度：每支2M，含槽底及槽蓋；其他規格.顏色歡迎洽詢）
| 型號 | 寬×高(mm) | 電線容量(以2.0平方計算) |
|---|---|---|
| SD-2210 | 22×10 | 3~8pcs |
| SD-3015 | 30×15 | 10~25pcs |
| SD-1616 | 16×16 | 3~10pcs |
| SD-2516 | 25×16 | 5~12pcs |
| SD-3816 | 38×16 | 12~30pcs |
| SD-2020 | 20×20 | 5~12pcs |
| SD-4020 | 40×20 | 20~40pcs |
| SD-1525 | 15×25 | 5~12pcs |
| SD-2525 | 25×25 | 10~25pcs |
| SD-3825 | 38×25 | 20~40pcs |
| SD-5025 | 50×25 | 25~45pcs |
| SD-2530 | 25×30 | 15~25pcs |
| SD-3030 | 30×30 | 20~40pcs |
| SD-10030 | 100×30 | 130~160pcs |
| SD-3333 | 33×33 | 25~45pcs |
| SD-10033 | 100×33 | 180~200pcs |
| SD-3838 | 38×38 | 45~50pcs |
| SD-2540 | 25×40 | 20~25pcs |
| SD-3340 | 33×40 | 40~45pcs |
| SD-4040 | 40×40 | 60~70pcs |
| SD-6040 | 60×40 | 100~115pcs |
| SD-7540 | 75×40 | 120~135pcs |
| SD-8040 | 80×40 | 120~135pcs |
| SD-10040 | 100×40 | 130~175pcs |
| SD-2545 | 25×45 | 20~25pcs |
| SD-3345 | 33×45 | 40~55pcs |
| SD-4545 | 45×45 | 60~70pcs |
| SD-6545 | 65×45 | 110~120pcs |
| SD-2550 | 25×50 | 20~30pcs |
| SD-3850 | 38×50 | 20~35pcs |
| SD-5050 | 50×50 | 80~90pcs |
| SD-7550 | 75×50 | 180~200pcs |
| SD-8050 | 80×50 | 180~200pcs |
| SD-10050 | 100×50 | 200~260pcs |
| SD-2560 | 25×60 | 40~45pcs |
| SD-4060 | 40×60 | 100~115pcs |
| SD-6060 | 60×60 | 120~135pcs |
| SD-8060 | 80×60 | 180~210pcs |
| SD-10060 | 100×60 | 240~290pcs |
| SD-12060 | 120×60 | 240~290pcs |
| SD-7264 | 72×64 | 200~220pcs |
| SD-2565 | 25×65 | 40~45pcs |
| SD-3365 | 33×65 | 60~75pcs |
| SD-4565 | 45×65 | 110~120pcs |
| SD-6565 | 65×65 | 180~200pcs |
| SD-12065 | 120×65 | 260~350pcs |
| SD-2575 | 25×75 | 50~55pcs |
| SD-3775 | 37.5×75 | 110~115pcs |
| SD-5075 | 50×75 | 180~200pcs |
| SD-7575 | 75×75 | 200~250pcs |
| SD-10075 | 100×75 | 260~320pcs |
| SD-12075 | 120×75 | 280~380pcs |
| SD-12575 | 120×75 | 280~380pcs |
| SD-15075 | 150×75 | 335~500pcs |
| SD-2580 | 25×80 | 60~75pcs |
| SD-4080 | 40×80 | 120~135pcs |
| SD-6080 | 60×80 | 180~210pcs |
| SD-8080 | 80×80 | 240~290pcs |
| SD-10080 | 100×80 | 260~350pcs |
| SD-12080 | 120×80 | 300~400pcs |
| SD-33100 | 33×100 | 180~200pcs |
| SD-37100 | 37.5×100 | 180~200pcs |
| SD-40100 | 40×100 | 130~175pcs |
| SD-48100 | 48×100 | 215~250pcs |
| SD-50100 | 50×100 | 210~260pcs |
| SD-55100 | 55×100 | 220~260pcs |
| SD-60100 | 60×100 | 240~290pcs |
| SD-70100 | 70×100 | 250~300pcs |
| SD-75100 | 75×100 | 260~300pcs |
| SD-80100 | 80×100 | 260~350pcs |
| SD-100100 | 100×100 | 300~400pcs |
| SD-150100 | 150×100 | 450~600pcs |
| SD-200100 | 200×100 | 600~800pcs |
| SD-200150 | 200×150 | 1040~1200pcs |
| SD-200200 | 200×200 | 1200~1600pcs |
| SD-300100 | 300×100 | 1040~1200pcs |

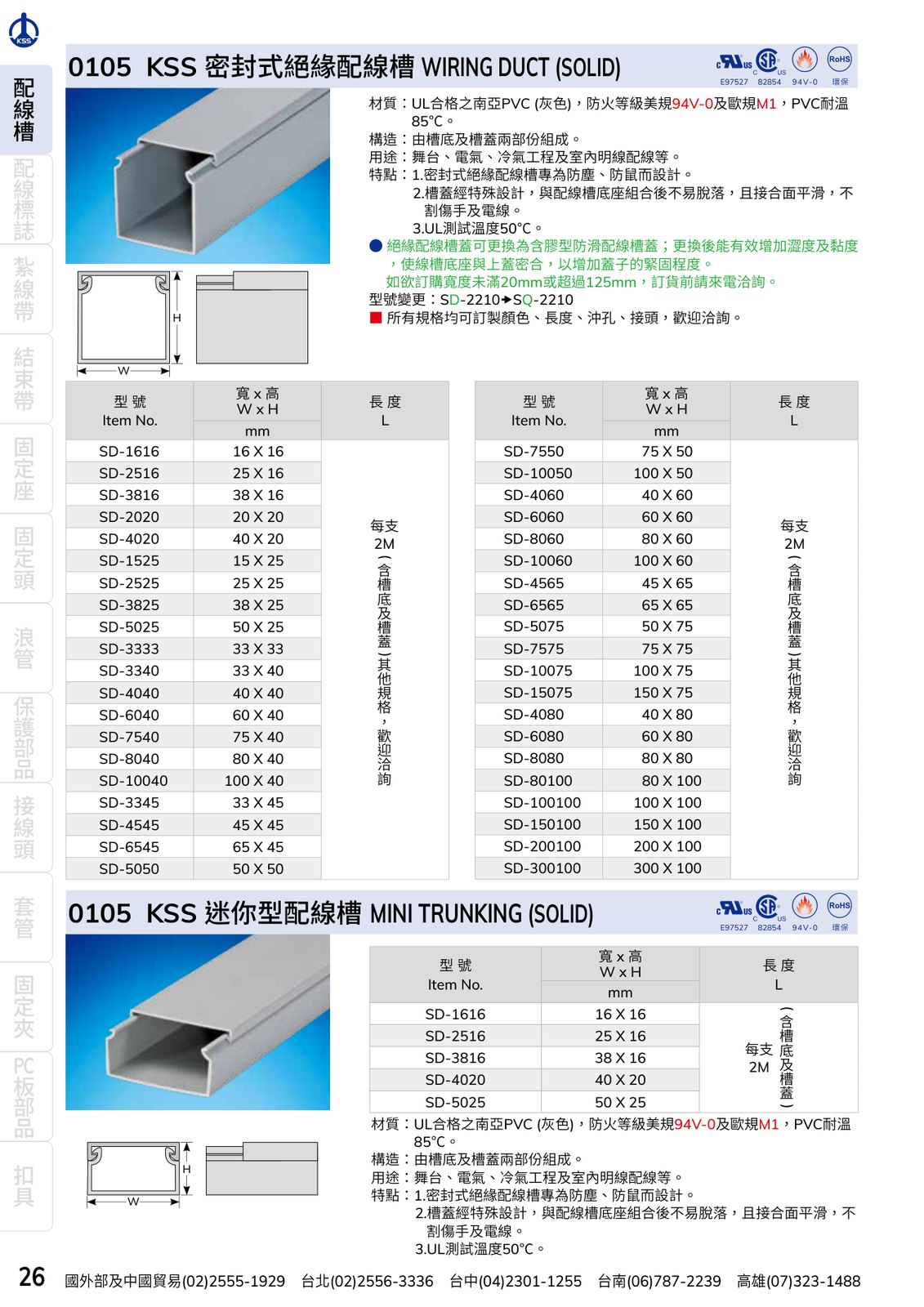

規格表
點選圖片可查看原尺寸。型號選型/編碼僅供參考，實際規格與供貨以原廠及報價為準。
